LB04A Series Smart Active Balance BMS for NCM LIFEPO4 LTO 7S-24S 40A 24V 48V 60V 72V with APP Control (LB04A Series, LB04A24S40A)
Product details
| Management number | 212399975 | Release Date | 2026/04/06 | List Price | $17.60 | Model Number | 212399975 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- LVNOON LB04A series Smart active balance BMS lithium battery protection board fit for Li-ion NCM LFP LiFePo4 LTO Battery Management System 3S to 24S, balance current: 0.4A. Continuous charge/discharge current: 40A & Maximum discharge current (MAX 2 min): 60A with smartphone APP control
- Suitable for 1V-5V Li-ion NCM LFP/LiFePo4 LTO battery types. Support series connection, suitable for 3-24S battery packs.
- All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection protect your battery better.
- Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high precision voltage acquisition (≤20mV) & high precision current acquisition (≤2%@FS) and Isolated power circuit

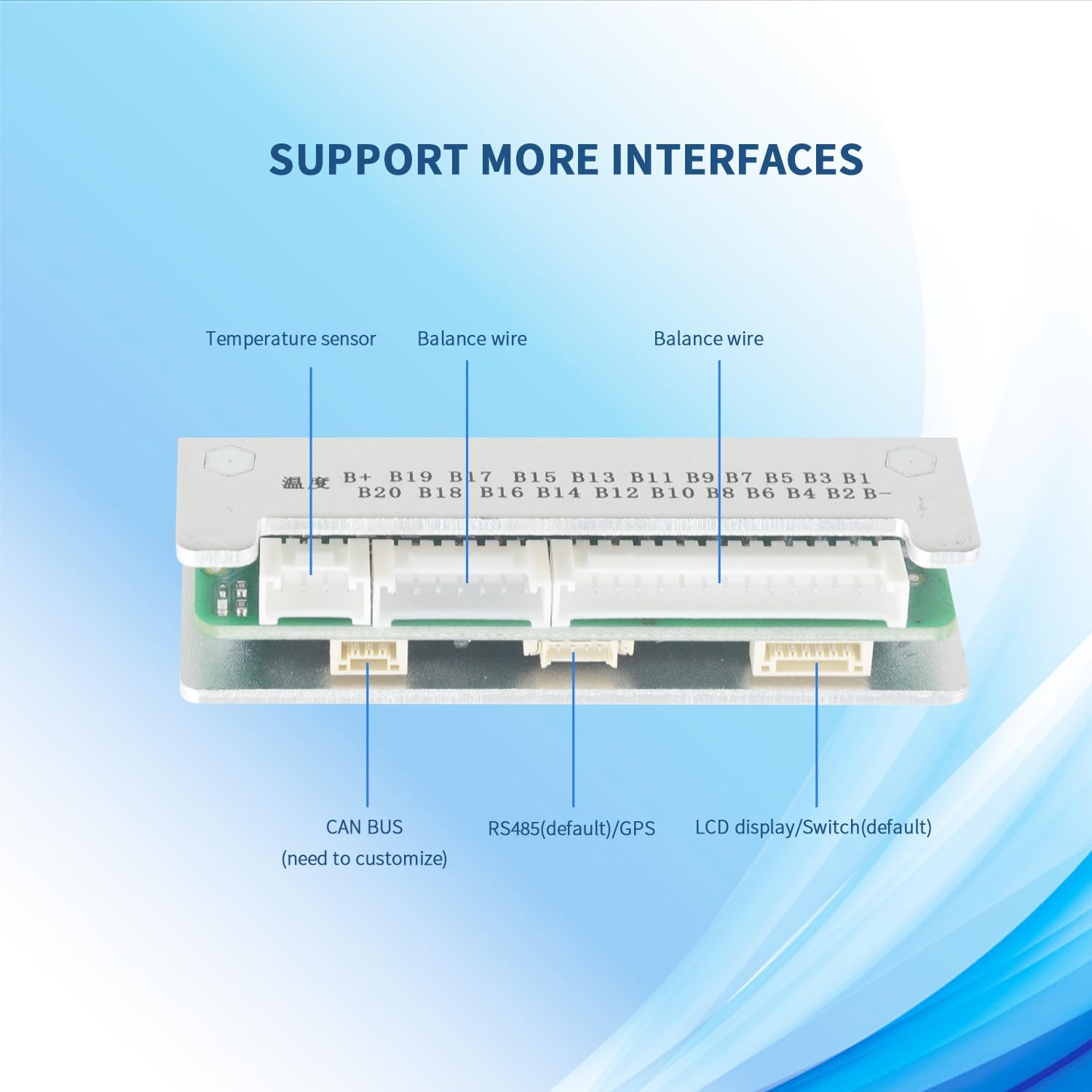

- Support more communication: Can add extra RS485 module / GPS module /LCD displays to work with the LVNOON smart active BMS together. If you need "CAN function", please contact us in advance.
- Easy to Use: 1. Weld the wires 2. Download the APP & use switch to activate the BMS 3. Turn on smartphone BT and find the relevant serial number to check all the battery data. The smartphone app fit for IOS & Android smart phones
| UPC | 762206889635 |
|---|---|
| Brand | LVNOON |
| Color | 0.4A balance current |
| Item Weight | 0.5 Kilograms |
| Manufacturer | Zhongshan LVNOON electronics co.,ltd |
| Model Number | LB04A |
| Input Voltage | 24 Volts |
| Current Rating | 40 Amps |
| Output Voltage | 24 Volts |
| Mfr Part Number | LB04A |
| Warranty Description | 1 Year warranty |
| Item Dimensions D x W x H | 5.51"D x 7.87"W x 1.58"H |
