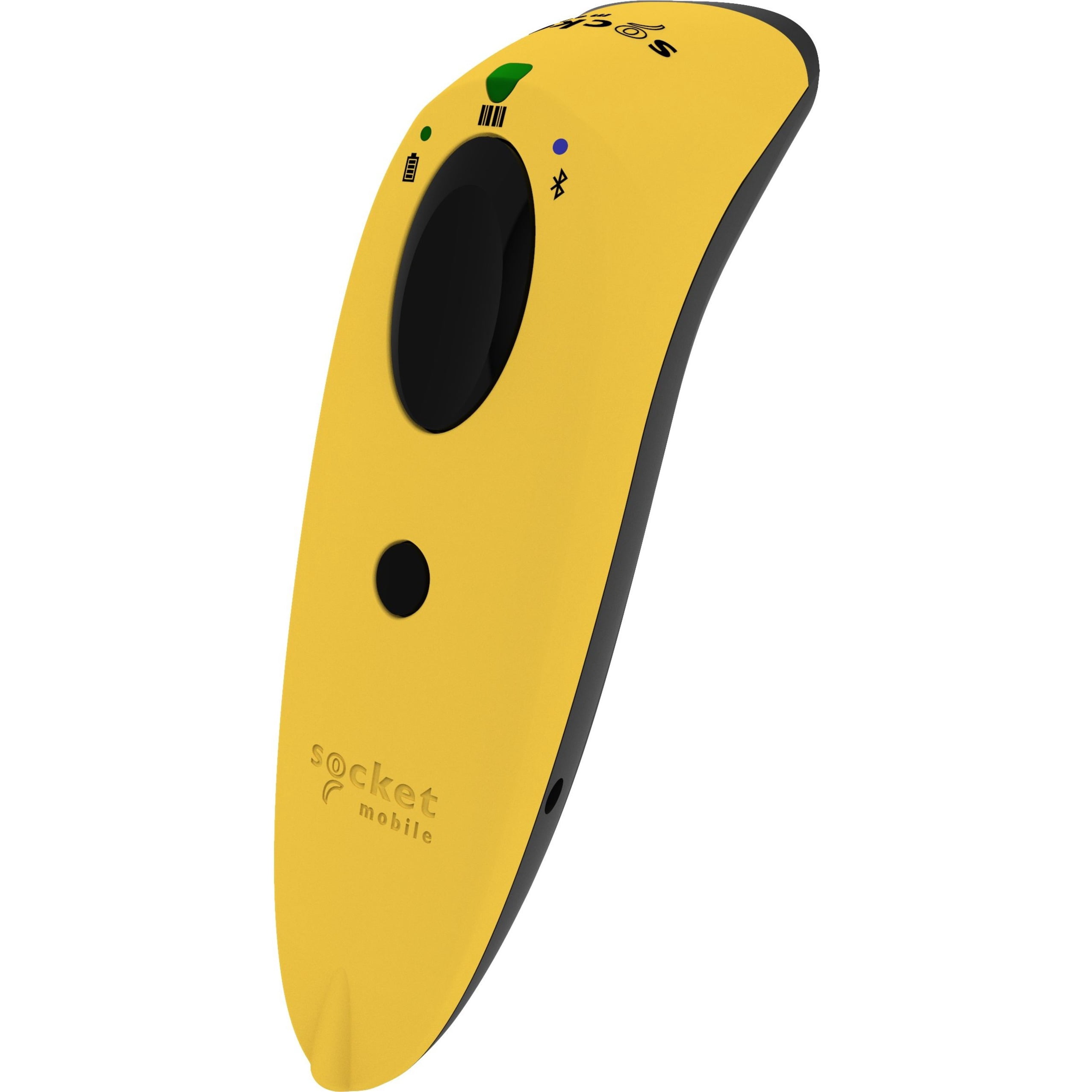

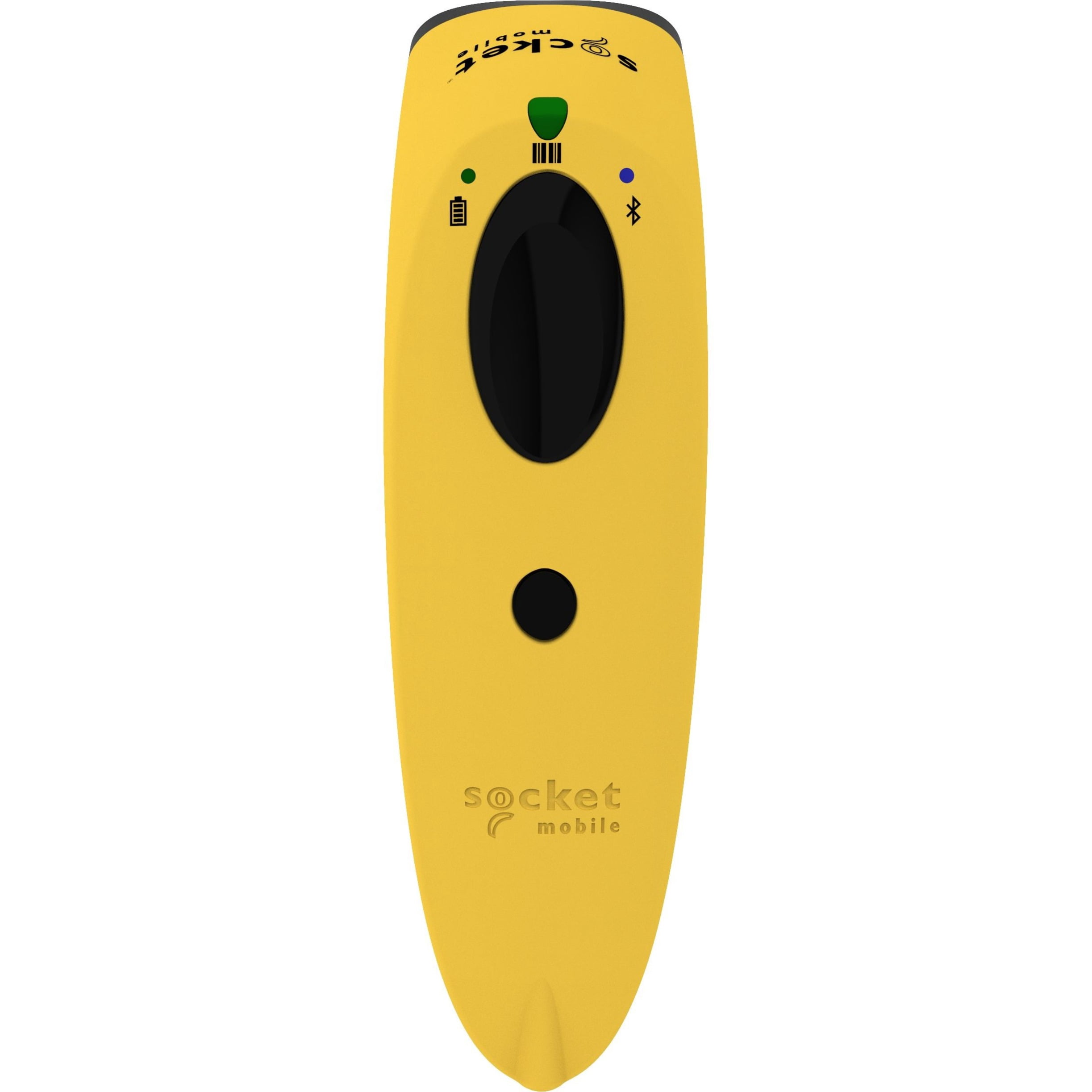

Socket Mobile SocketScan S720, Linear Barcode Plus QR Code Reader, Yellow (cx3978-3035)

<b><u>Technical Information</u><br></b><br><b>Connectivity Technology:</b> Wireless<br><b>Scanning Capability:</b> 1D, 2D<br><b>Barcode Symbology Supported:</b> <b>1D Symbologies:</b> Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey<br><br><b>2D Symbologies:</b> Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code<br><b>Light Source:</b> LED<br><b>Image Sensor Type:</b> Linear<br><b>Scanning Distance:</b> 14.96"<br><b>Field of View (Horizontal):</b> 45°<br><b>Field of View (Vertical):</b> 34°<br><b>Maximum Ambient Light:</b> 100000 lux<br><b>Drop Specification:</b> 4 ft. drop to linoleum<br><b>Minimum Print Contrast:</b> 25%<br><b>Maximum Element Resolution (Code 39):</b> 5 mil<br><b>Maximum Element Resolution (DataMatrix):</b> 10 mil<br><b>Image Sensor Resolution:</b> 1280 x 960<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><br><b><u>Battery Information</u><br></b><br><b>Battery Included:</b> Yes<br><b>Battery Chemistry:</b> Nickel Metal Hydride (NiMH)<br><b>Battery Capacity:</b> 2000 mAh<br><b>Battery Weight:</b> 1.92 oz<br><b>Maximum Battery Run Time:</b> 16 Hour<br><b>Maximum Battery Recharge Time:</b> 6 Hour<br><br><b><u>Environmental Conditions</u><br></b><br><b>Operating Temperature:</b> 32°F (0°C) to 113°F (45°C)<br><b>Storage Temperature:</b> -40°F (-40°C) to 158°F (70°C)<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> Handheld<br><b>Product Color:</b> Yellow<br><b>Weight (Approximate):</b> 4.13 oz<br><br><b><u>Miscellaneous</u><br></b><br><b>Package Contents:</b> <ul> <li>SocketScan S720, Linear Barcode Plus QR Code Reader, Yellow</li> <li>Wrist strap</li> </ul><br><b>Application/Usage:</b> Ticketing, Asset Tracking, Transportation, Delivery, Loyalty Program, Inventory, Hospitality<br><b>Platform Supported:</b> PC, Mac, iOS, Android<br><b>Country of Origin:</b> United States<br><b>Environmentally Friendly:</b> Yes<br><b>Environmental Compliance:</b> Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)<br><br><b><u>Warranty</u><br></b><br><b>Limited Warranty:</b> 1 Year<br><b>Additional Warranty Information:</b> optional extended warranty available.

• Compatible with Apple® iOS devices (iPad®, iPhone®, iPod Touch®) and Android, Windows®, Mac and Linux.
• Scanning - 2D and 1D barcode scanning.
• Auto Scan Mode - Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button.
• Exceptional Ergonomics - Small, light and fits perfectly in hand for comfortable use over extended periods.
• Long-Lasting, Replaceable, Rechargeable Battery - Power to last over 16 hours on a single charge.
• User Indicators - Intuitive LEDs for Bluetooth connection, battery level and scanning status.
• User Feedback - Audible tones and pulsation.
• LED Aimer - Bright, rectangular illumination field with LED pointer for precise aiming.
• Decoding Ability - Reads damaged and poorly printed barcodes.
• Developer Support Available - The Socket Mobile development team is available to help integrate CaptureSDK into your app.
